Product Code : RE-Er2 (C2O4)3.10H2O-5N-PO
Erbium Oxalate is an important colorant in glasses and porcelain enamel glazes. High purity Erbium Oxalate is widely applied as a dopant in making optical fiber and amplifiers. It is particularly useful as an amplifier for fiber optic data transfer.
Erbium Oxalate is highly insoluble in water and converts to the oxide when heated (calcined).
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Information
Erbium Oxalate is an important colorant in glasses and porcelain enamel glazes. High purity Erbium Oxalate is widely applied as a dopant in making optical fiber and amplifiers. It is particularly useful as an amplifier for fiber optic data transfer.
Erbium Oxalate is highly insoluble in water and converts to the oxide when heated (calcined).
Erbium Oxalate Synonyms
Erbium(III) oxalate decahydrate; Oxalic acid, erbium(3+) salt; Dierbium trioxalate; Erbium ethanedioate; ErbiumOxalat; Oxalate De Erbium; Oxalate Del Erbio
Erbium Oxalate Specification
Per your request or drawing
We can customized as required
Properties（Theoretical）
| Compound Formula | H20Er2C6O22 |
| Molecular Weight | 778.73 |

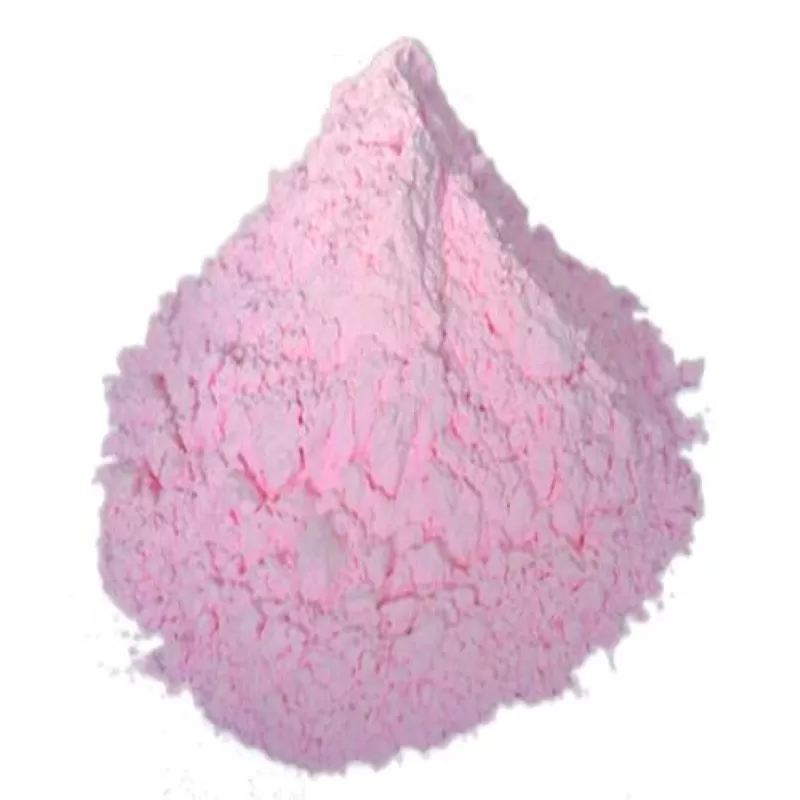

| Appearance | Red to pink crystals or powder |
| Melting Point | 574 °C |
| Boiling Point | N/A |
| Density | 2.64 g/cm3 |
| Solubility in H2O | N/A |
| Exact Mass | 777.907286 |
| Monoisotopic Mass | 775.905208 |
| Grade | 99.999% | 99.99% | 99.9% | 99% |
| CHEMICAL COMPOSITION | ||||
| Er2O3 /TREO (% min.) | 99.999 | 99.99 | 99.9 | 99 |
| TREO (% min.) | 30 | 30 | 29 | 29 |
| Rare Earth Impurities | ppm max. | ppm | % max. | % max. |
| Tb4O7/TREO Dy2O3/TREO Ho2O3/TREO Tm2O3/TREO Yb2O3/TREO Lu2O3/TREO Y2O3/TREO | 2 5 5 2 1 1 1 | 20 10 30 50 10 10 20 | 0.01 0.01 0.04 0.03 0.05 0.05 0.1 | 0.05 0.1 0.3 0.3 0.3 0.1 0.8 |
| Non-Rare Earth Impurities | ppm max. | ppm max. | % max. | % max. |
| Fe2O3 SiO2 CaO Cl- CoO NiO CuO | 2 10 30 50 2 2 2 | 5 30 50 200 5 5 5 | 0.001 0.005 0.005 0.03 | 0.005 0.02 0.02 0.05 |
Erbium Oxalate Application
Erbium Oxalate is an important colorant in glasses and porcelain enamel glazes. High purity Erbium Oxalate is widely applied as a dopant in making optical fiber and amplifiers. It is particularly useful as an amplifier for fiber optic data transfer.
Packing of Erbium Oxalate
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’Erbium Oxalate is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | Er2(C2O4)3 • 10H2O |
| CAS | 30618-31-6 |
| MDL Number | MFCD00150142 |
| EC No. | 212-764-4 |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | 164744 |
| IUPAC Name | erbium(3+); oxalate; decahydrate |
| SMILES | C(=O)(C(=O)[O-])[O-].C(=O)(C(=O)[O-])[O-].C(=O)(C(=O)[O-])[O-].O.O.O.O.O.O.O.O.O.O.[Er+3].[Er+3] |
| InchI Identifier | InChI=1S/3C2H2O4.2Er.10H2O/c3*3-1(4)2(5)6;;;;;;;;;;;;/h3*(H,3,4)(H,5,6);;;10*1H2/q;;;2*+3;;;;;;;;;;/p-6 |
| InchI Key | OVECSXKDHFDFMD-UHFFFAOYSA-H |
