Product Code : AL-MHC-CU-CU
MHC alloy is the upgraded TZM alloy product, with superior performance and strength compared to TZM alloy.
Molybdenum hafnium carbide (MHC) alloy is a particle-reinforced molybdenum alloy that contains hafnium and carbon. Molybdenum has excellent creep resistance, low resistivity, high corrosion resistance, high thermal conductivity, and low thermal expansion. Comparing to pure molybdenum, Molybdenum Hafnium Carbon Alloy has higher heat resistance, better creep resistance, and higher recrystallization temperature.

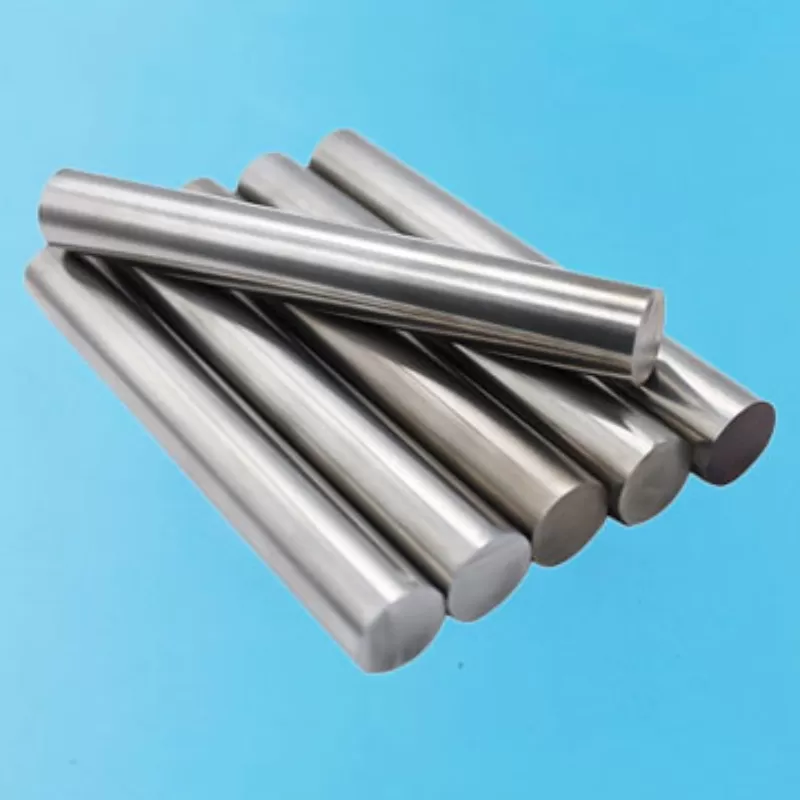

ATT is a professional supplier of high-purity Molybdenum Hafnium Carbide (MHC) Alloy. We also produce disc, granules, ingot, pellets, pieces, powder , rod, wire, sputtering target and in numerous other forms and custom shapes. Other shapes are available by request.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Information
MHC alloy is the upgraded TZM alloy product, with superior performance and strength compared to TZM alloy.
Molybdenum hafnium carbide (MHC) alloy is a particle-reinforced molybdenum alloy that contains hafnium and carbon. Molybdenum has excellent creep resistance, low resistivity, high corrosion resistance, high thermal conductivity, and low thermal expansion. Comparing to pure molybdenum, Molybdenum Hafnium Carbon Alloy has higher heat resistance, better creep resistance, and higher recrystallization temperature.
ATT is a professional supplier of high-purity Molybdenum Hafnium Carbide (MHC) Alloy. We also produce disc, granules, ingot, pellets, pieces, powder , rod, wire, sputtering target and in numerous other forms and custom shapes. Other shapes are available by request.
Molybdenum Hafnium Carbide (MHC) Alloy Synonyms
Molybdenum hafnium carbon alloy, moly hafnium carbide, molybdenum + 1.2% hafnium, Mo-1Hf-0.05C
Molybdenum Hafnium Carbide (MHC) Alloy Specification
Per your request or drawing
We can customized as required
Properties（Theoretical）
| Compound Formula | Mo-Hf-C |
| Appearance | Metallic solid in various forms (bars, rods, sheets, plates, discs, targets, billets) |
| Melting Point | N/A |
| Boiling Point | N/A |
| Density | N/A |
| Solubility in H2O | N/A |
| Tensile Strength | ≥689 MPa (mid-yield) |
| Vickers Hardness | 255-320 (mid-radius, DPH) |
Chemical Composition of MHC Alloy
| Element | Mo | Hf | C | Fe | Ni | Si |
| Content (%) | ≥98.43 | 0.80-1.4 | 0.050-0.15 | ≤0.010 | ≤0.0050 | ≤0.0050 |
The Physical Properties Between TZM & MHC
| Densityg/cm3 | Thermal ConductivityW/M∙K | Specific HeatKJ/kg∙℃ | CTEMm/℃ | Melting Point℃ | Boiling Point℃ | |
| TZM | 10.13 | 135 | 0.25 | 0.0052 | 2610 | 5560 |
| MHC | 10.23 | 135 | 0.25 | 0.0052 | 2610 | 5560 |
The Mechanical Properties Between TZM & MHC
| Temperature℃ | Tensile StrengthMPa | Yield StrengthMPa | Elongation% | |
| TZM | 1200 | 370 | 310 | 29 |
| MHC | 1400 | 300 | 283 | / |
Advantages of MHC Alloy
Dimensional stability
Optimum non-deformability
High thermal stability
No cold brittleness
Good hot ductility
Very high crystallization temperatures
Applications of MHC Alloy
- Metal forming – making extrusion dies,
- Extrusion of copper and copper alloys
- Molten metal processing.
Packing of Molybdenum Hafnium Carbide (MHC) Alloy
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’Molybdenum Hafnium Carbide (MHC) Alloy is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | Mo-Hf-C |
| MDL Number | N/A |
| EC No. | N/A |
