Product Code : ME-Pb-NN-CU
Lead is a soft, malleable and ductile metal. It has an abundance in the earth's crust of 14 ppm. In its elemental form, lead has a metallic gray appearance. Lead occurs naturally as a mixture of four stable isotopes: 204Pb (1.48%), 206Pb (23.6%), 207Pb (22.6%), and 208Pb (52.3%). Lead is a relatively unreactive post-transition metal. Its weak metallic character is illustrated by its amphoteric nature; lead and lead oxides react with acids and bases, and it tends to form covalent bonds. Compounds of lead are usually found in the +2 oxidation state rather than the +4 state common with lighter members of the carbon group.

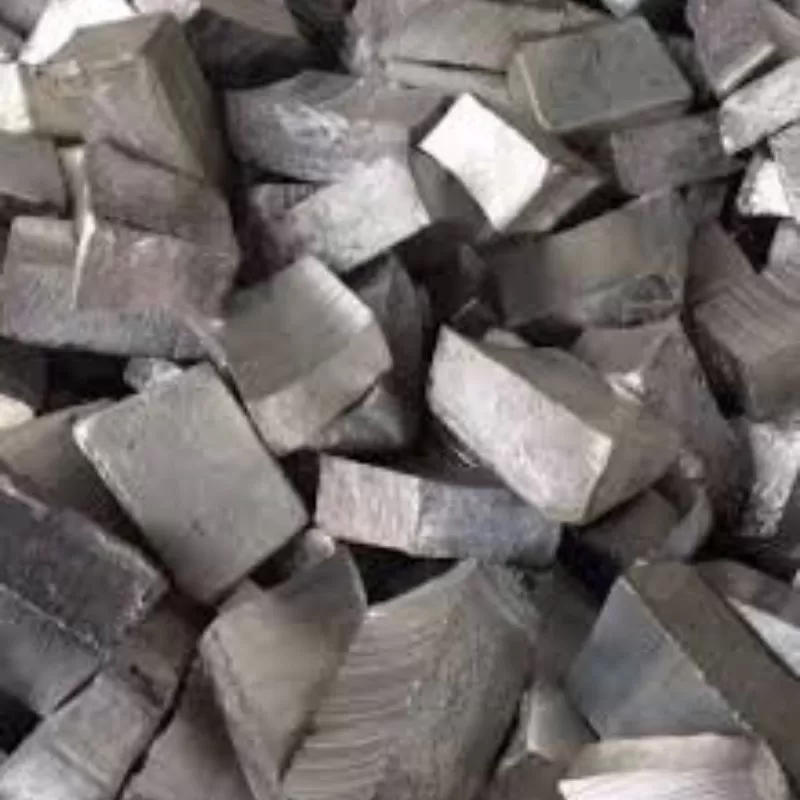

ATT is a professional supplier of high-purity lead Metal, The purity can be 99%(2N), 99.9%(3N), 99.99%(4N), 99.999%(5N), 99.9999%(6N), 99.99999%(7N),lead Metal available as disc, granules, ingot, pellets, pieces, powder , rod, wire, sputtering target and in numerous other forms and custom shapes. We also produce Strontium as rods, powder and plates. Other shapes are available by request.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Information
Lead is a soft, malleable and ductile metal. It has an abundance in the earth's crust of 14 ppm. In its elemental form, lead has a metallic gray appearance. Lead occurs naturally as a mixture of four stable isotopes: 204Pb (1.48%), 206Pb (23.6%), 207Pb (22.6%), and 208Pb (52.3%). Lead is a relatively unreactive post-transition metal. Its weak metallic character is illustrated by its amphoteric nature; lead and lead oxides react with acids and bases, and it tends to form covalent bonds. Compounds of lead are usually found in the +2 oxidation state rather than the +4 state common with lighter members of the carbon group. Exceptions are mostly limited to organolead compounds. Like the lighter members of the group, lead tends to bond with itself; it can form chains and polyhedral structures. , the main source of the metal being the ore "galena", lead (II) sulphide (PbS) which occurs as grey cubic crystals, often in conjunction with "sphalerite", the equivalent sulphide of zinc. Lead oxidises readily in moist air, is stable to oxygen and water, but dissolves in nitric acid. It is a poor electrical and thermal conductor but has reasonable corrosion resistance. Applications for this metal are wide and varied; for example, its relative imperviousness to radiation makes it ideal as radiation shielding material for use with X-ray equipment. Lead is also used in ceramic glazes, batteries, paints, as a fuel additive in petrol (lead tetraethyl) and as a prime constituent of soft solders. However, its use is now being discouraged as lead is now known to be detrimental to health, particularly to that of children. Elemental LeadLead is obtained mainly from galena (PbS) by a roasting process. Anglesite, cerussite, and minim are other common lead containing minerals. Lead does occur as a free element in nature, but it is rare. It is a dense, soft metal that is very resistant to corrosion and poorly conductive compared to other metals. Its density and low melting point make it useful in applications such as electrolysis and industrial materials. It is a heavy metal that is denser than most common materials. Lead is soft and malleable, and also has a relatively low melting point. When freshly cut, lead is a shiny gray with a hint of blue. It tarnishes to a dull gray color when exposed to air. Lead has the highest atomic number of any stable element and three of its isotopes are endpoints of major nuclear decay chains of heavier elements
ATT is a professional supplier of high-purity lead Metal, The purity can be 99%(2N), 99.9%(3N), 99.99%(4N), 99.999%(5N), 99.9999%(6N), 99.99999%(7N),lead Metal available as disc, granules, ingot, pellets, pieces, powder , rod, wire, sputtering target and in numerous other forms and custom shapes. We also produce Strontium as rods, powder and plates. Other shapes are available by request.
Synonyms
(7N) 99.99999% Lead Metal,(6N) 99.9999% Lead Metal,high-purity lead Metal
Lead Metal Specification
Size：customized
Purity: 99%(2N), 99.9%(3N), 99.99%(4N), 99.999%(5N). 99.9999%(6N), 99.99999%(7N).
Per your request or drawing
We can customized as required
Properties（Theoretical）
| Molecular Weight | 207.2 |
| Appearance | Bluish white |
| Melting Point | 327.5 °C |
| Boiling Point | 1740 °C |
| Density@20 | 11.35 g/cm3 |
| Electrical Resistivity | 20.61 microhm-cm @ 20 °C |
| Electronegativity | 1.8 Paulings |
| Material condition | Polycrystalline |
| Material condition | Sand Cast |
| Heat of Fusion | 1.224 Cal/gm mole |
| Latent heat of fusion ( J g⁻¹ ) | 23.2 |
| Heat of Vaporization | 42.4 K-Cal/gm atom at 1740 °C |
| Latent heat of evaporation ( J g⁻¹ ) | 862 |
| Poisson's ratio ( Polycrystalline ) | 0.44 |
| Poisson's ratio ( Sand cast ) | 0.44 |
| Specific Heat | 0.038 Cal/g/oK @ 25 °C |
| Thermal Conductivity | 0.353 W/cm/K @ 298.2 K |
| Thermal Expansion | (25 °C) 28.9 µm·m-1·K-1 |
| Tensile modulus ( GPa ) ( Polycrystalline ) | 16 |
| Tensile modulus ( GPa ) ( Sand cast ) | 16 |
| Tensile strength ( MPa ) ( Sand cast ) | 12 |
| Yield strength ( MPa ) ( Sand cast ) | 5.5 |
| Superconductivity critical temperature ( K ) | 7.196 |
| Temperature coefficient ( K⁻¹ ) | 0.00420 @0-100°C |
| Thermal emf against Pt (cold 0C - hot 100C) ( mV ) | 0.44 |
| Bulk modulus ( GPa ) ( Polycrystalline ) | 45.8 |
| Bulk modulus ( GPa ) ( Sand cast ) | 45.8 |
| Hardness - Mohs ( Sand cast ) | 1.5 |
Chemical Composition
Purity:5N
| Element | Value |
| Cd | <1 PPM |
| Cu | 1 PPM |
| Ni | <1 PPM |
| Bi | 1 PPM |
| Fe | <1 PPM |
| Ag | 1 PPM |
| Sn | <1 PPM |
We can customized as required
Applications of Lead Metal
Lead's high density and resistance to corrosion have been exploited in a number of related applications. It is used as ballast in sailboat keels; its density allows it to take up a small volume and minimize water resistance, thus counterbalancing the heeling effect of wind on the sails. It is used in scuba diving weight belts to counteract the diver's buoyancy Because of its corrosion resistance, lead is used as a protective sheath for underwater cables. Lead has many uses in the construction industry; lead sheets are used as architectural metals in roofing material, cladding, flashing, gutters and gutter joints, and on roof parapets. Lead is still used in statues and sculptures,[q] including for armatures. In the past it was often used to balance the wheels of cars; for environmental reasons this use is being phased out in favor of other materials.
Lead has been used for bullets since their invention in the Middle Ages. It is inexpensive; its low melting point means small arms ammunition and shotgun pellets can be cast with minimal technical equipment; and it is denser than other common metals, which allows for better retention of velocity. It remains the main material for bullets, alloyed with other metals as hardeners.
Lead is added to copper alloys, such as brass and bronze, to improve machinability and for its lubricating qualities. Being practically insoluble in copper the lead forms solid globules in imperfections throughout the alloy, such as grain boundaries. In low concentrations, as well as acting as a lubricant, the globules hinder the formation of swarf as the alloy is worked, thereby improving machinability. Copper alloys with larger concentrations of lead are used in bearings. The lead provides lubrication, and the copper provides the load-bearing support.
Lead's high density, atomic number, and formability form the basis for use of lead as a barrier that absorbs sound, vibration, and radiation. Lead has no natural resonance frequencies;as a result, sheet-lead is used as a sound deadening layer in the walls, floors, and ceilings of sound studios Organ pipes are often made from a lead alloy, mixed with various amounts of tin to control the tone of each pipe. Lead is an established shielding material from radiation in nuclear science and in X-ray rooms due to its denseness and high attenuation coefficient. Molten lead has been used as a coolant for lead-cooled fast reactors
Packing of Lead Metal
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’ High Purity Lead Metal is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | Pb |
| CAS | 7439-92-1 |
| MDL Number | MFCD00134050 |
| EC No. | 231-100-4 |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | 5352425 |
| SMILES | [Pb] |
| InchI Identifier | InChI=1S/Pb |
| InchI Key | WABPQHHGFIMREM-UHFFFAOYSA-N |
