Product Code : ME-NbB2-5N-PO

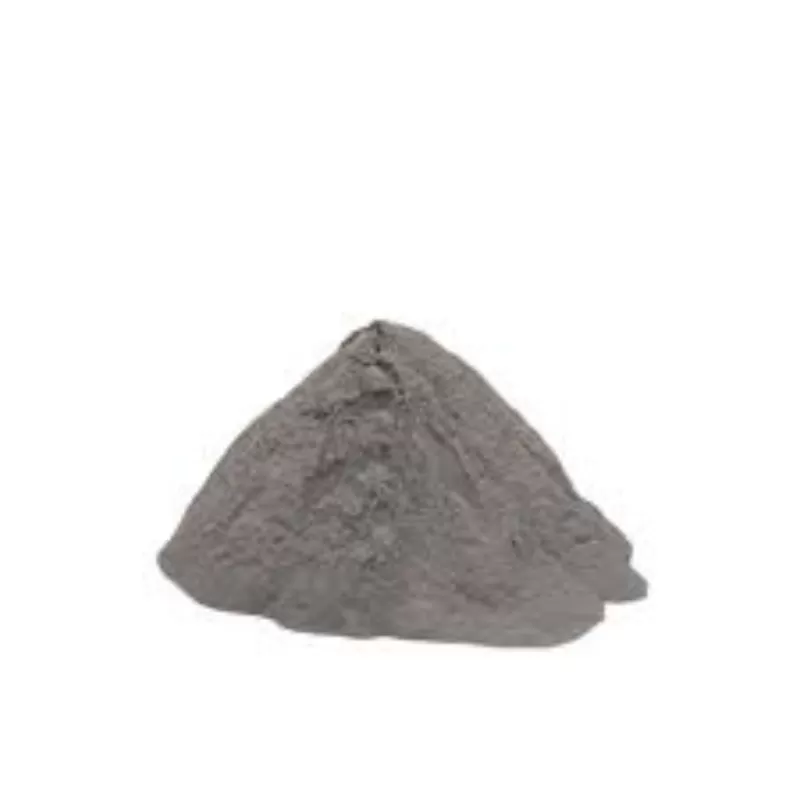

Niobium Boride Powder also called Niobium Diboride, which has the characteristics of high melting point, high hardness, good electrical and thermal conductivity, resistance to molten metal corrosion, and superconductivity. It is used in ceramic materials, electrode materials, thin-film materials, and refractory materials.
Niobium Boride powder, NbB2, is a highly covalent refractory ceramic material with a hexagonal crystal structure. It is an ultra-high temperature ceramic (UHTC) with a melting point of 3050°C. Coupled with the relatively low density of ~6.97 g/cm3 and good high-temperature strength, this makes it a candidate for high-temperature aerospace applications, such as hypersonic flight or rocket propulsion systems.
ATT is a professional supplier of Niobium Boride Powder, We also produce disc, granules, ingot, pellets, pieces, powder, rod, wire, sputtering target and in numerous other forms and custom shapes. Other shapes are available by request.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Information
Niobium Boride Powder also called Niobium Diboride, which has the characteristics of high melting point, high hardness, good electrical and thermal conductivity, resistance to molten metal corrosion, and superconductivity. It is used in ceramic materials, electrode materials, thin-film materials, and refractory materials.
Niobium Boride powder, NbB2, is a highly covalent refractory ceramic material with a hexagonal crystal structure. It is an ultra-high temperature ceramic (UHTC) with a melting point of 3050°C. Coupled with the relatively low density of ~6.97 g/cm3 and good high-temperature strength, this makes it a candidate for high-temperature aerospace applications, such as hypersonic flight or rocket propulsion systems.
ATT is a professional supplier of Niobium Boride Powder, We also produce disc, granules, ingot, pellets, pieces, powder, rod, wire, sputtering target and in numerous other forms and custom shapes. Other shapes are available by request.
Synonyms
Niobium Boride Powder
| Purity | 99.5% - 99.99% |
| CAS | 12007-29-3 |
Per your request or drawing
We can customized as require
Niobium Boride Powder Specification
| Particle Size, um | Composition, wt% | ||||
| B | C | O | N | ||
| NbB2 | 1.5-2.5 | 18.0-20.0 | ≦0.5 | ≦0.7 | ≦0.5 |
Niobium Boride Powder Properties (Theoretical)
| Niobium Boride (NbB2) Powder | |||
| Molecular formula | NbB2 | Molecular weight | 114.526 |
| Color | Gray | Crystal structure | Hexagonal |
| Melting | 3050℃ | Density | 6.97 g / cm3 |
Applications of Niobium Boride Powder
Niobium Boride (NbB2) Powder is widely used in ceramic materials, electrode materials, thin-film materials, and refractory materials.
Packing of Niobium Boride Powder
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’Niobium Boride Powder is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
