Home > Products > Metal & Alloys > Tungsten Metals and Alloys > Tungsten Disilicide Powder
Tungsten Disilicide Powder

Tungsten Disilicide Powder

Product Code : AL-WSi2-CU-PO

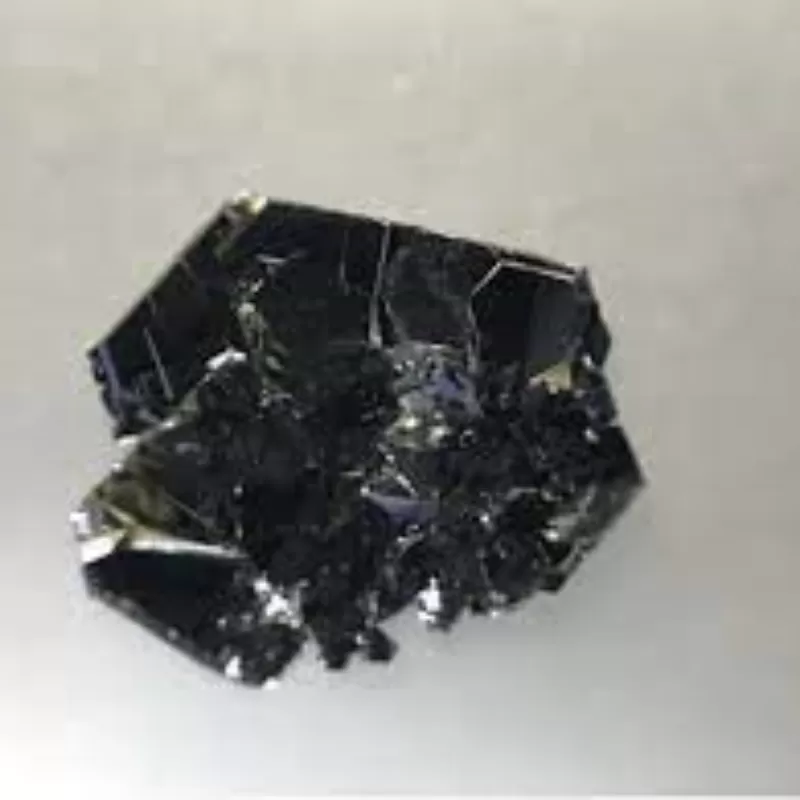

Tungsten disilicide (WSi2) powder is a black-gray powder with a tetragonal crystal structure, which is often used as an electric shock material in the field of microelectronics. It has the advantages of high melting point, good stability and low resistivity. Heeger Materials can offer high quality tungsten disilicide (WSi2) powders at competitive prices.

In most volumes, tungsten silicide is usually immediately available. Ultra-high purity, high purity, sub-micron and nano-powder forms can be considered. ATT produces a number of standard grades where applicable, including the Mil Spec(military grade); ACS, reagents and technical grades; Food, agriculture and pharmaceutical grades; Optical grades, USP and EP/BP(European Pharmacopoeia/British Pharmacopoeia), and follow applicable ASTM test standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information and reference calculators for converting relevant units of measurement are available.

ATT is a professional supplier of tungsten oxide (WO3) sputtering targets, we also produce optical discs, pellets, ingots, balls, sheets, powders, rods, wires, sputtering targets and many other forms and custom shapes. Other shapes are available upon request.

INQUIRY Next Products

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Product Product Code Purity Size Contact Us
Tungsten Disilicide Powder AL-WSi2-CU-PO Customized Customized

Product Information

Tungsten disilicide (WSi2) powder is a black-gray powder with a tetragonal crystal structure, which is often used as an electric shock material in the field of microelectronics. It has the advantages of high melting point, good stability and low resistivity. Heeger Materials can offer high quality tungsten disilicide (WSi2) powders at competitive prices.

In most volumes, tungsten silicide is usually immediately available. Ultra-high purity, high purity, sub-micron and nano-powder forms can be considered. ATT produces a number of standard grades where applicable, including the Mil Spec(military grade); ACS, reagents and technical grades; Food, agriculture and pharmaceutical grades; Optical grades, USP and EP/BP(European Pharmacopoeia/British Pharmacopoeia), and follow applicable ASTM test standards. Typical and custom packaging is available. Additional technical, research and safety (MSDS) information and reference calculators for converting relevant units of measurement are available.

ATT is a professional supplier of tungsten oxide (WO3) sputtering targets, we also produce optical discs, pellets, ingots, balls, sheets, powders, rods, wires, sputtering targets and many other forms and custom shapes. Other shapes are available upon request.


Synonyms

Tungsten Silicide

Tungsten Disilicide Powder

Per your request or drawing

We can customized as require


Tungsten Disilicide Powder Specification

ProductPurity (%)Particle   Size (D50)Chemical   Composition (%)
ONCSi
HM-WSi2-1>99.51-3μm≤0.8≤0.1≤0.122.3-23.5
HM-WSi2-2>99.9-325mesh≤0.5≤0.05≤0.122.3-23.5
NoteWe can   provide different particle sizes according to customers' requirements.


Tungsten Disilicide Powder Properties (Theoretical)

Compound FormulaSi2W
Molecular Weight240.01
AppearanceBluish-gray crystalline solid
Melting Point2160 °C
Boiling PointN/A
Density9.3 g/cm3
Solubility in H2OInsoluble
Exact Mass239.904786
Monoisotopic Mass239.904786


Applications of Tungsten Disilicide Powder

Used in microelectromechanical systems

Used in oxidation-resistant coatings

Used as a shunt over polysilicon lines to increase their conductivity and increase signal speed


Packing of Tungsten Disilicide Powder

Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.

ATTs’Tungsten Disilicide Powder is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.

Chemical Identifiers

Linear FormulaWSi2
MDL NumberMFCD00049704
EC No.234-909-0
Beilstein/Reaxys No.N/A
Pubchem CID16212546
IUPAC Namebis(λ3-silanylidyne)tungsten
SMILES[Si]#[W]#[Si]
InchI IdentifierInChI=1S/2Si.W
InchI KeyWQJQOUPTWCFRMM-UHFFFAOYSA-N
