Product Code : AL-AgW-W50% Ag50%-SP
Tungsten silver alloy is a kind of two-phase structure pseudo alloy mainly composed of tungsten and silver. Because the physical properties of silver and tungsten are quite different, it can’t be produced by melting and casting. Instead, it is usually obtained by powder alloy technology. The technological process includes batching, mixing, pressing, sintering, melting, and cold working.
Tungsten silver alloy combines the advantages of metal tungsten and silver, among which tungsten has high melting point (tungsten point is 3410°C) and high density (tungsten density is 19.34 g/m3), while silver has excellent conductivity and thermal conductivity. Tungsten silver alloy (composition generally ranges from wcu7 to wcu50) has uniform microstructure, high temperature resistance, high strength, arc erosion resistance and high density.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Information
Tungsten silver alloy is a kind of two-phase structure pseudo alloy mainly composed of tungsten and silver. Because the physical properties of silver and tungsten are quite different, it can’t be produced by melting and casting. Instead, it is usually obtained by powder alloy technology. The technological process includes batching, mixing, pressing, sintering, melting, and cold working.
Tungsten silver alloy combines the advantages of metal tungsten and silver, among which tungsten has high melting point (tungsten point is 3410°C) and high density (tungsten density is 19.34 g/m3), while silver has excellent conductivity and thermal conductivity. Tungsten silver alloy (composition generally ranges from wcu7 to wcu50) has uniform microstructure, high temperature resistance, high strength, arc erosion resistance and high density.
Compared with W-Cu alloy, W-Ag alloy has better conductivity, plasticity and oxidation resistance, but lower strength and hardness, and higher price.
ATT is a professional supplier of high-purity Tungsten Silver Alloy Sheet. We also produce disc, granules, ingot, pellets, pieces, powder, rod, wire, sputtering target and in numerous other forms and custom shapes. Other shapes are available by request.
Tungsten Silver Alloy Synonyms
Silver tungsten composite, Elkonite, AgW50, AgW55, AgW60, AgW65, AgW70, Ag75, AgW80, AgW90

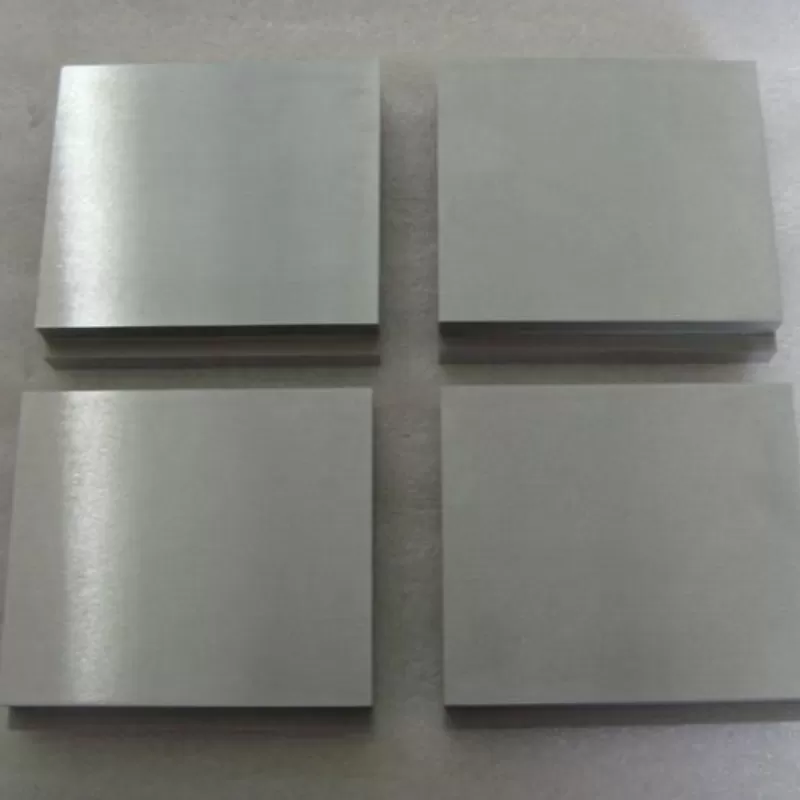

Tungsten Silver Alloy Sheet Specification
Per your request or drawing
We can customized as required
Properties（Theoretical）
| Compound Formula | AgW |
| Appearance | Silvery-gray metallic solid in various forms such as sheets and plates, bars, discs, foils, rods, tubes, ingots |
| Melting Point | Varies by composition |
| Boiling Point | N/A |
| Density | Varies by composition |
| Solubility in H2O | N/A |
Silver Tungsten Alloy Properties
| Grade | Ag % | Total Impurities % (≤) | W % | Density g/cm3 (≥) | Hardness HRB (≥) | Resistivity μΩ·cm (≤) | Conductivity IACS/% (≥) | Bending Strength Mpa (≥) |
| AgW30 | 70±1.5 | 0.5 | Bal. | 11.75 | 75 | 2.3 | 75 | |
| AgW40 | 60±1.5 | 0.5 | Bal. | 12.4 | 85 | 2.6 | 66 | |
| AgW50 | 50±1.5 | 0.5 | Bal. | 13.15 | 105 | 3 | 57 | |
| AgW55 | 45±1.5 | 0.5 | Bal. | 13.55 | 115 | 3.2 | 54 | |
| AgW60 | 40±1.5 | 0.5 | Bal. | 14 | 125 | 3.4 | 51 | |
| AgW65 | 35±1.5 | 0.5 | Bal. | 14.5 | 135 | 3.6 | 48 | |
| AgW70 | 30±1.5 | 0.5 | Bal. | 14.9 | 150 | 3.8 | 45 | 657 |
| AgW75 | 25±1.5 | 0.5 | Bal. | 15.4 | 165 | 4.2 | 41 | 686 |
| AgW80 | 20±1.5 | 0.5 | Bal. | 16.1 | 180 | 4.6 | 37 | 726 |
Process of Tungsten Silver Alloy Sheet
Dosing – Mixture powder – Pressing – Sintering – Polishing – Inspection.
Advantage of Tungsten Silver Alloy Sheet
1. High conductivity, high hardness
2. High heat conductivity
3. Wear resistance, resistance to the burning of the arc
Applications of Tungsten Silver Alloy Sheet
Tungsten Silver Alloy Sheet is widely used in high temperature resistant materials, electrical alloy for high voltage switch, electrical processing electrode, microelectronic materials. As spare parts and components, it is widely used in aerospace, aviation, electronics, power, metallurgy, machinery, sports equipment and other industries.
Packing of Tungsten Silver Alloy Sheet
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’Tungsten Silver Alloy Sheet is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | W-Ag |
| MDL Number | N/A |
| EC No. | N/A |
| Pubchem CID | 57470393 |
| IUPAC Name | silver; tungsten |
| SMILES | [Ag].[W] |
| InchI Identifier | InChI=1S/Ag.W |
| InchI Key | ITZSSQVGDYUHQM-UHFFFAOYSA-N |
