Spherical Chromium (Cr) Powder

Product Code : 3D-Cr-CU-PO

Spherical chromium powder has the characteristics of high sphericity, good fluidity, high purity, large loose density, full density inside particles, no hollow powder, and so on. Spherical chromium powder can be widely used in cemented carbide, diamond tools, welding materials, buttons, and other fields and it is suitable for laser/electron beam material manufacturing, thermal isostatic pressing, laser cladding, vacuum coating, thermal spraying, cold spraying, and so on.

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Product Product Code Purity Size Contact Us
Spherical Chromium (Cr) Powder3D-Cr-CU-PO1Customize0-15μm
Spherical Chromium (Cr) Powder3D-Cr-CU-PO2Customize15-53μm
Spherical Chromium (Cr) Powder3D-Cr-CU-PO3Customize45-105μm
Spherical Chromium (Cr) Powder3D-Cr-CU-PO4Customize75-150μm
Spherical Chromium (Cr) Powder3D-Cr-CU-PO5CustomizeCustomize

Chromium Powder Synonyms

1.12097, GF80314141, GF74768169, 266299, GF70837959, GF79263412, GF85982136, GF88112459, 266264, GF47766707, GF43034105, GF54744273, GF30982620, GF14056387, GF24837509, GF57047867, GF33185640, GF25702534, GF04687858, GF03465480, GF48205627, GF24097530, GF15631534, 10147, 10148, 10452, 13796, 35668, 41797, 44556

Spherical Chromium Powder Chemical Composition

Chemical Composition
Value (%)≥99.9<0.02<0.01<0.006<0.005<0.001<0.001<0.001
Gas Impurities
Value (%)</= 0.005</= 0.001</= 0.030</= 0.004

Spherical Chromium Powder Physical Properties

Density (g/cm3)Hall Flow Rate (s/50g)
Apparent DensityTap DensityValue
>4.2>5.5</= 15.0

Spherical Chromium (Cr) Powder Particle Size

0-15μm, 5-25μm, 15-45μm, 15-53μm, 45-75μm, 45-105μm, 75-150μm. (Various granularities can be customized according to customer requirements)

Spherical Chromium (Cr) Powder Particle Size Description

● 0-15μm (D10=3~5μm, D50=6~10μm, D90=12~14μm)

● 5-25μm (D10=5~10μm, D50=15~20μm, D90=20~25μm)

● 15-45μm (D10=15~20μm, D50=25~30μm, D90=35~40μm)

● 15-53μm (D10=15~20μm, D50=25~35μm, D90=45~50μm)

● 45-75μm (D10=45~55μm, D50=55~65μm, D90=70~75μm)

● 45-105μm (D10=50~60μm, D50=75~85μm, D90=95~105μm)

● 45-150μm (D10=55~70μm, D50=110~120μm, D90=140~150μm)

● 75-150μm (D10=80~90μm, D50=110~125μm, D90=135~150μm)

Spherical Chromium (Cr) Powder

Spherical Chromium (Cr) Powder

Spherical Chromium Powder Characteristics

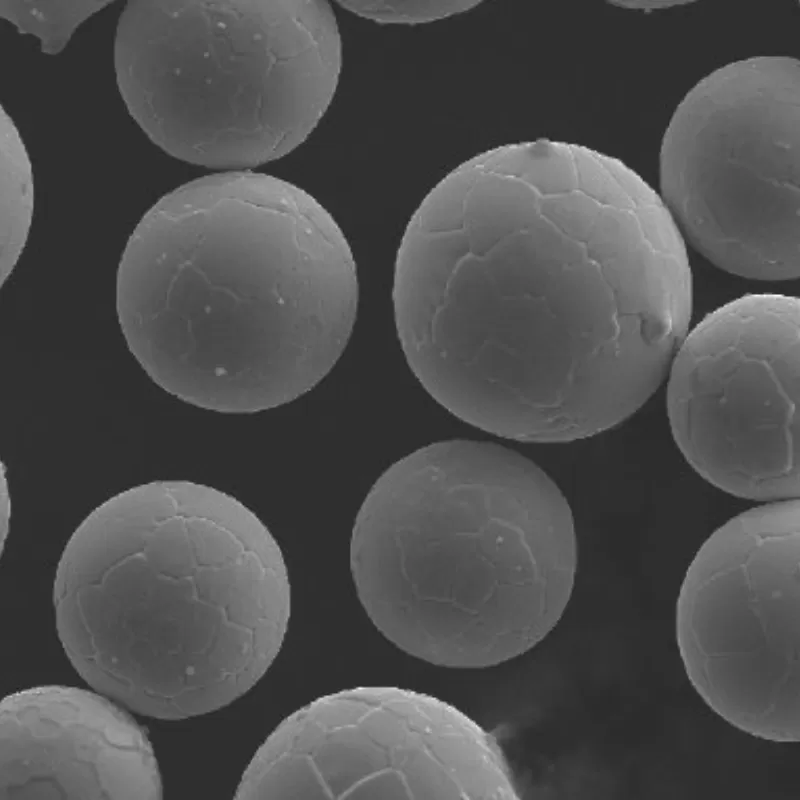

High purity (≥99.9%), low oxygen (≤300ppm), high sphericity (≥98%), smooth surface, no satellite spheres, uniform particle size distribution, and excellent flow properties (≤15.0s/50g), and high bulk density (≥4.5g/cm3) and tap density (≥5.5g/cm3).

Spherical Chromium Powder Applicable Processes

laser/electron beam additive manufacturing (SLM/EBM, 3D printing), laser direct deposition (DLD), powder hot isostatic pressing (HIP), metal injection molding (MIM), powder metallurgy (PM), laser cladding ( LC), and other processes.

Spherical Chromium Powder Application

RF plasma spheroidized chromium powder has the characteristics of high sphericity, good fluidity, high purity, large loose packing density, the full internal density of the particles, and no hollow powder. It is widely used in cemented carbide, diamond tools, and welding materials. , Palladium, vacuum coating, thermal spraying, ceramics, etc.

Packing of Spherical Chromium Powder

Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.

ATTs’Spherical Chromium Powder is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.

Chemical Identifiers

Linear FormulaCr
MDL NumberMFCD00010944
EC No.231-157-5
Beilstein/Reaxys No.N/A
Pubchem CID23976
InchI IdentifierInChI=1S/Cr
