Product Code : AL-Ni-5N-SF
Nickel Strip is a conductor material used to connect the battery cell anode/cathode and battery protection modules.High Purity Nickel strip made by wrought Powder Metallurgy technology. Our process produces high conductivity materials (99.98% Nickel Strip) used in collectors and connector tab for many battery chemistries.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Information
Nickel Strip is a conductor material used to connect the battery cell anode/cathode and battery protection modules.High Purity Nickel strip made by wrought Powder Metallurgy technology. Our process produces high conductivity materials (99.98% Nickel Strip) used in collectors and connector tab for many battery chemistries.
Synonyms

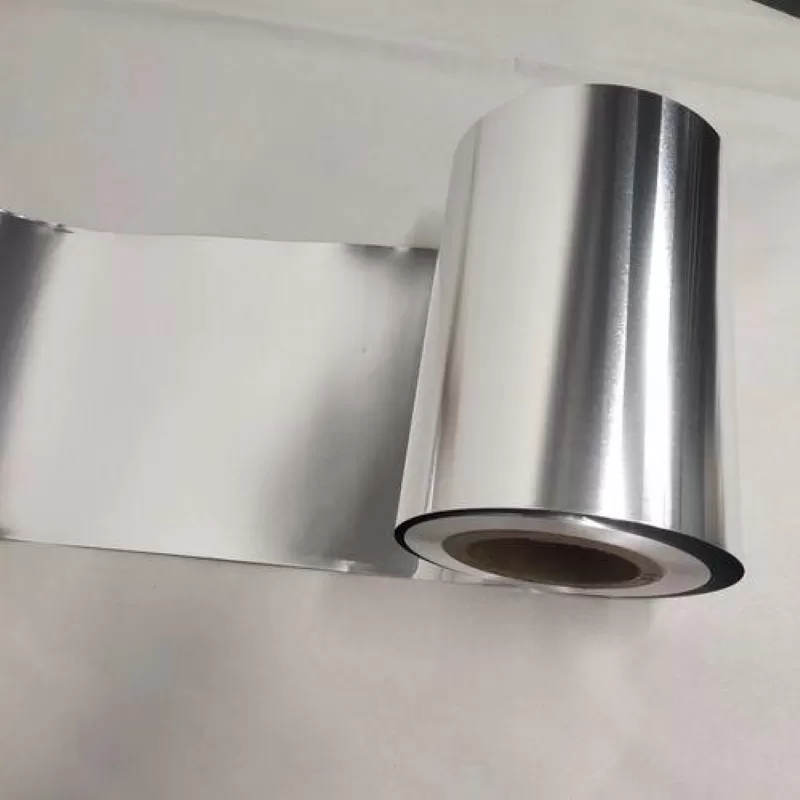

Nickel Foil / Strip Specification
Dimensions
Size: Thickness 0.03-2.0 mm, Width 2-450 mm, Length >500 mm
Material: UNS N02200, N02201
Standard: ASTM B162
Purity: >=99.0%, 99.5%, 99.9%, 99.99%, 99.995%
Packing: In Coil
Condition: Annealed, Half-hard, Hard
Per your request or drawing
We can customized as required
Nickel Products
| Materials | Ni |
| Plate | √ |
| Sheet | √ |
| Strip | √ |
| Rod | √ |
| Sputtering Target | √ |
| Tube | √ |
Other: Spherical Nickel Powder, Nickel crucibles, Nickel nuts, Nickel bolts, Nickel heating elements, and Nickel shielding screens.
Types of Nickel Foil
Hastelloy C-22 Foil
Hastelloy G-30 Foil
Hastelloy B-3 Foil
Hastelloy C-276 Foil
Hastelloy X Foil
Haynes 242 Foil
Advantages of Nickel Strip
· Excellent formability
· Resistance to tarnishing or chemical reactivity in ambient temperature and atmospheric environments
· Ease of plating
· Moderate resistance to acids
· Excellent resistance to caustic solutions
· Highest degree of electrical conductivity
· Lowest electrical resistivity available in pure nickel strip
· Homogeneity, microcleanliness, and close composition control to enhance weldability
· Low levels of surface oxides to reduce die wear and provide excellent solderability
Properties（Theoretical）
Nickel (UNS N02200) Composition
| (UNS N02200) | Nickel, min | Copper, max | Iron, max | Manganese, max | Carbon, max | Silicon, max | Sulfur, max |
| % | 99 | 0.25 | 0.4 | 0.35 | 0.15 | 0.35 | 0.01 |
Low Carbon Nickel Composition
| (UNS N02201) | Nickel, min | Copper, max | Iron, max | Manganese, max | Carbon, max | Silicon, max | Sulfur, max |
| % | 99 | 0.25 | 0.4 | 0.35 | 0.02 | 0.35 | 0.01 |
High Purity Nickel Composition
High Purity Nickel
| Material / Purity | Fe | Co | Mg | Al | Cu | Ag | S | C | Si | Mn |
| 2N5 | 1400 | 60 | 20 | 7 | 200 | 300 | 1900 | |||
| 4N | 13 | 10 | 10 | 10 | 10 | 10 | 20 | 10 | 10 | |
| 4N5 | 3 | 2 | 4 | 1 | 0.7 | 2 | 10 | 3 | 1 |
| Annealed Properties | ||||
| Grade | Tensile Strength ksi | Yield Strength ksi | Elongation % In 2 Inches | Vicker Hardness |
| Nickel 201 UNS N02201 | 57.7 | 17.3 | 42 | 95 |
| 50% Cold Rolled Properties | ||||
| Grade | Tensile Strength ksi | Yield Strength ksi | Elongation % In 2 Inches | Vicker Hardness |
| Nickel 201 UNS N02201 | 98.5 | 96.5 | 1-4 | 209 |
| Molecular Weight | 58.69 |
| Appearance | Lustrous silvery metal |
| Melting Point | 1455 °C |
| Boiling Point | 2732 °C |
| Density | 8.90 g/cm3 |
| Electrical Resistivity | 69.3 nΩ·m (20 °C) |
| Electronegativity | 1.91 Paulings |
| Heat of Fusion | 17.50 kJ·mol-1 |
| Young's Modulus | 200 GPa |
| Heat of Vaporization | 377.4 kJ·mol-1 |
| Poisson's Ratio | 0.31 |
| Specific Heat | 0.44 kJ/kg·K |
| Thermal Conductivity | 90.9 W·m-1·K-1 |
| Thermal Expansion | 13.4 µm·m-1·K-1 (25 °C) |
| Vickers Hardness | 637 MPa |
Applications of Nickel Strip
Nickel Strip is a conductor material used to connect the battery cell anode/cathode and battery protection modules. High Purity Nickel strip made by wrought Powder Metallurgy technology. Our process produces high conductivity materials (99.98% Nickel Strip) used in collectors and connector tab for many battery chemistries..Our nickel strip products are mainly used to connect multiple NiMh, NiCd or Li-Ion batteries into a battery pack. Other battery applications include battery tabs, cathodes, switchgear connections and nickel mesh within battery catalysts. It is also widely used in industries including telecommunication, electrovacuum, special bulb, etc.
Packing of Nickel Strip
Standard Packing:
Sealed bags in carton boxes. Special package is available on request.
ATTs’ Nickel Strip is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | Ni |
| CAS | 7440-02-0 |
| MDL Number | MFCD00011137 |
| EC No. | 231-111-4 |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | 935 |
| SMILES | [Ni] |
| InchI Identifier | InChI=1S/Ni |
| InchI Key | PXHVJJICTQNCMI-UHFFFAOYSA-N |
